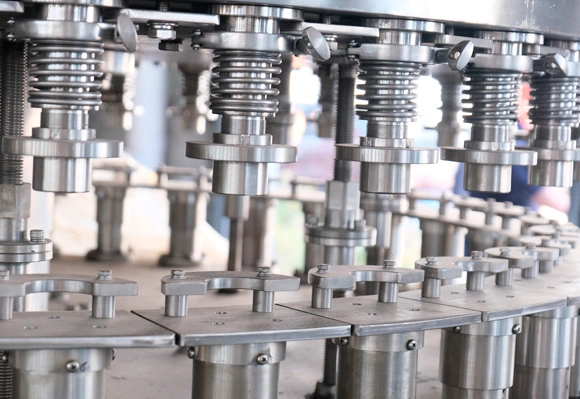

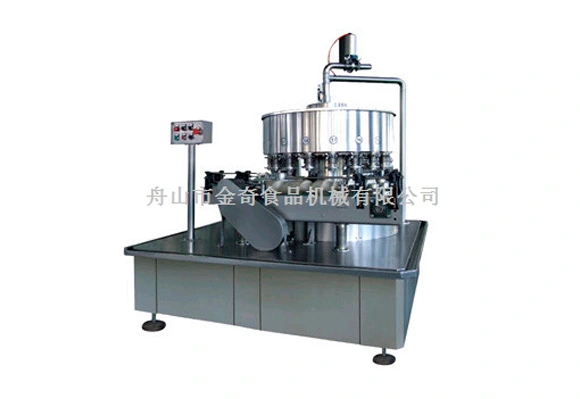

JQ18(12) TGZ fluid filling machine is suitable for automatic volume quantitative filing of fruit juice, soup, liquid milk other still beverages and other fluid materials of low viscosity. It has such advantages as accurate filling quantization, stable mechanical performance, no filling in case of no can, frequency conversion speed adjustment, simple operation, wide application range, etc. It is an ideal filling device for various beverage plants.
| Material: | 95% Stainless Steel, 5% Carbon Steel (the Foundation) |
| Filling Head: | 18 (12) |
| Production Type: | Juice, Soup, Milk drink, low viscosity non-gas liquid |
| Production Capacity: | 100~250cans/min Max (80~150cans/min Max) |
| Can Height: | 70~160mm |
| Can Diameter: | φ52.3~99mm (202#~401#) |
| Motor Power: | 3Kw |
| Size: | 2100x1600x2000mm (2000x1500x2000mm) |
| Weight: | 1.5T (1.1T) |
It has a fast filling speed.
After filling, the liquid level in the can is consistent with the height of the can mouth.
The whole machine runs smoothly and has a beautiful appearance.
No can, no filling, easy to use and maintain, touch screen operation, frequency conversion speed regulation, etc.
If you are interested in our food machinery, please contact us. KingQi will get back to you as soon as possible.
